Build & Capacity

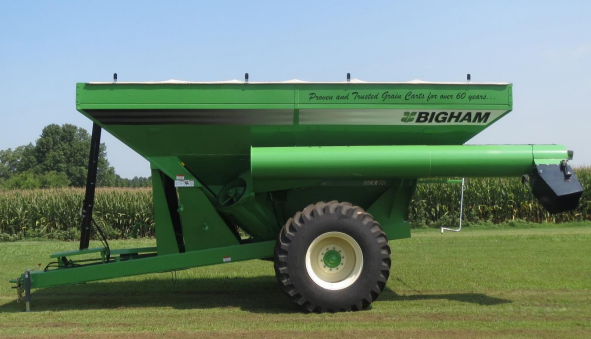

• Models available: GCX700 (700 bu), GCX850 (850 bu), GCX1050 (1050 bu)
• Heavy-duty frame and adjustable axle (120” to 152” track width)
• Painted interior for easier grain sliding
• Cleanout and slide doors for easy maintenance and unloading

 Auger System

• 20” housing with 19” Super Edge™ auger flighting
• Hydraulic folding auger (top and bottom sections)
• Auger operates via PTO or optional hydraulic drive
• Top auger includes remote-controlled adjustable downspout (6” travel)

Drive System

• PTO drive standard, optional hydraulic drive conversion kit available
• Gearbox (SAE 90 oil) with replaceable seals and bearings
• Heavy-duty Walterscheid PTO shafts with friction clutch

 Safety & Operation

• Clevis-type drawbar required; clevis hitch for transport only (not for field use)
• Safety chain included for hitch security
• Detailed operator safety checklist and maintenance guidelines
• Auger fold/unfold warning system and flow control preset at factory

 Electrical System

• SAE JS60A 7-pin connector for tail and work lights
• Includes auger-mounted work lights and in-tractor downspout remote
• Color-coded wiring diagram provided

Maintenance-Friendly

• Easy auger removal for servicing
• Grease fittings on bearings, auger joints, and jack stands
• Self-lubricating bronze hanger bearings with grease ports
• Daily greasing recommended during operation

Optional Add-ons

• Weightronix electronic weighing system (not recommended for use with axle adjustment)
• Multiple tire and wheel options (standard: 800/65R32 on GCX850)

Approximate Weights

• GCX700: 11,450 lbs empty, ~5,725 lbs tongue weight when loaded
• GCX850: 11,800 lbs empty, ~5,900 lbs tongue weight
• GCX1050: 12,300 lbs empty, ~6,700 lbs tongue weight
