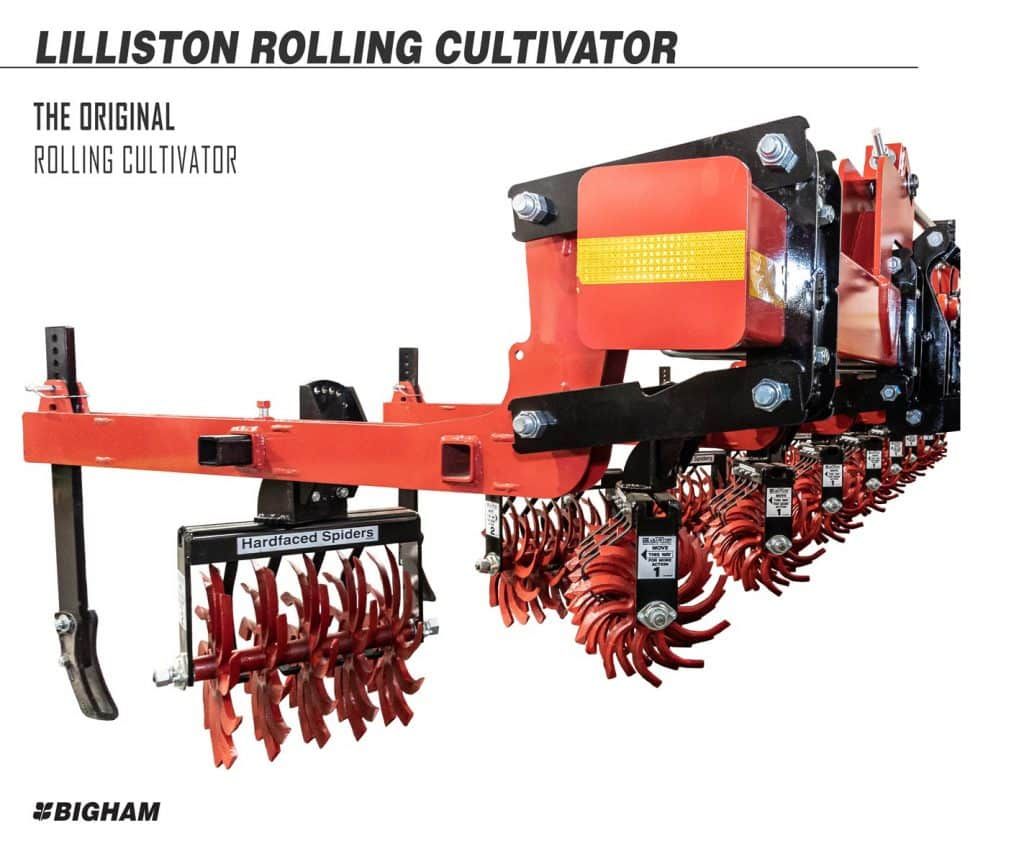

Lilliston® Rolling Cultivator®
OVERVIEW
Versatile Cultivation and Bed Preparation–Made Better
Introducing the new Lilliston® Rolling Cultivator® Generation 4. For over 60 years farmers have depended on the Lilliston Rolling Cultivator to provide efficient operation and minimize cost of ownership. The improved Generation 4 also provides many valuable improvements in reliability and operation.
- Quick, Easy Adjustment (Improved Productivity)
- Torsion Spring Design (Linear, Constant Downforce)
- AR400 Steel Tab & Slot Construction (Stronger, Lighter)
- 2 to 16 Row Configurations
- 16” Spiders
- Available Hard-Faced
- 3, 4, 5 Spider Gangs
- 26% Fewer Parts
- Toolbar Options:
- Rigid
- Vertical Fold
- Over Fold
- Stack Fold
- In-Furrow Mount Enables More Configurations
FEATURES
Features and Specifications
Individual Gang Cultivating Widths:
Description Straight Max. Angle
3-Spider Gang………71/2”………111/2”
4-Spider Gang……..101/2”……..141/2”
5-Spider Gang……….14”……….173/4”
3 Disc Gang……………9”………..141/4”
4 Disc Gang…………..13”……….173/4”
Row Spacings:
3-spider rear gangs are generally used for row spacings 20” to 32”.
4-spider rear gangs are generally used for row spacings 30” to 40”.
5-spider rear gangs are generally used for row spacing 36” or wider.
Soil Penetration
Variable by means of adjustable coil spring on each gang pipe.
Tool Bars
All Rolling Cultivators are equipped on 7×7” tool bars.
100” Through 250” tool bars are 1/4” wall.
300” and longer tool bars are 3/8” wall.
Folding Tool Bars are equipped with cylinders and hoses.
OPTIONS
- Ratchet Adjusting Gauge Wheels
- Add-On spiders
- Tool Bar Parking Stands
- Cleanout Shank Assembly
