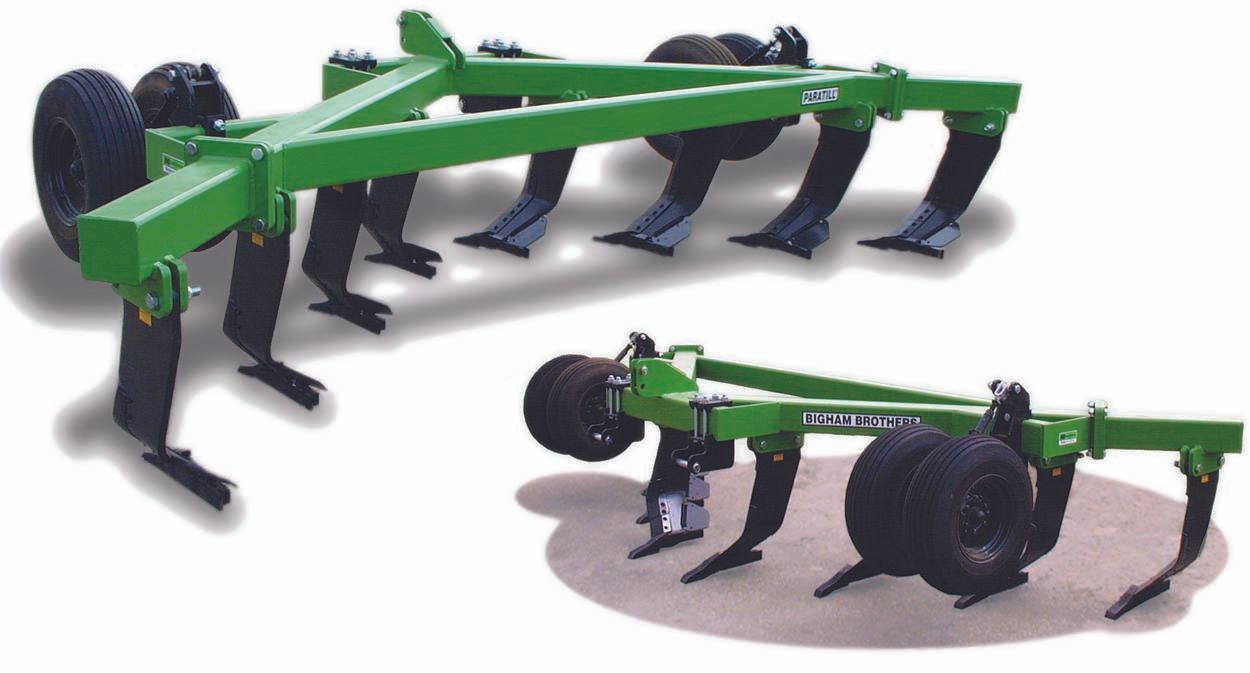

V-Till Features

• Heavy duty V-Frame is constructed from 7 x 7 x 3/8” tube. Heavy welded Leg clamps space legs at optimum 26” point centers for a consistent tillage across the width of the frame. Heavy Category III wide hitch is standard on all models.
• Each Paratill Leg is protected by six high quality replaceable wear surface parts. Each clamp is equipped with a shear bolt to prevent damage when rocks or other obstructions are encountered.
• Extra Heavy Duty Gauge Wheels are included with both models. Eight Leg machines include duals; Six Leg machines have singles.

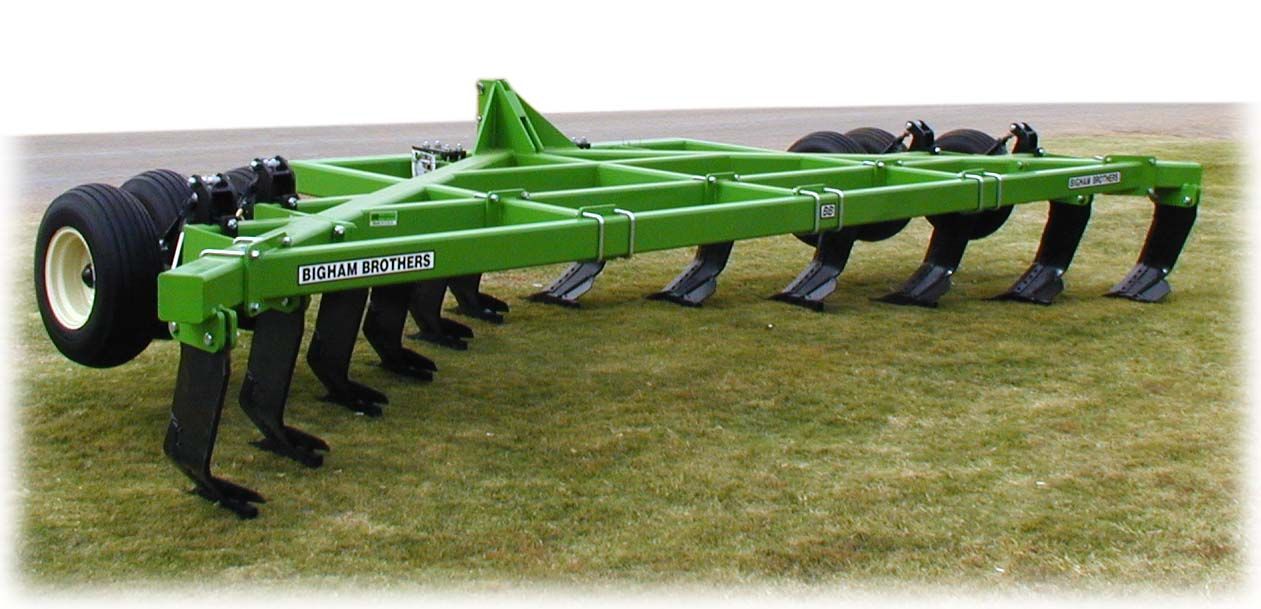

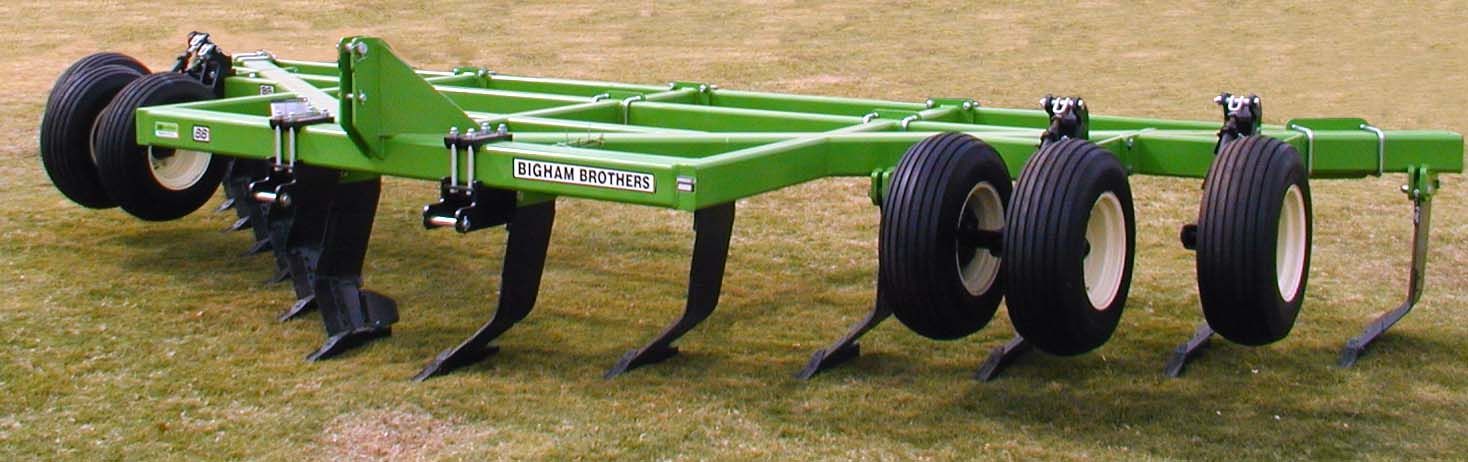

Super Duty V-Till Features

• Super Duty V-Till® Frame is constructed from 7 x 7 x 1/2” tube. Heavy welded frame is massive and can withstand the harshest soil and operating conditions. Heavy Category IV hitch is standard on all Super Duty models. Category III hitch may be substituted.
• Each Paratill Leg is protected by six high quality replaceable wear surface parts, and equipped with a shear bolt to prevent damage when rocks or other obstructions are encountered. Leg clamps space legs at optimum 26” point centers for a consistent tillage across the width of the frame.
• Super Duty Gauge Wheels are included with all models. Super Duty Gauge Wheels feature eight bolt hubs with a static load capacity of 8000 lbs. each. Eight and Ten Leg machines include duals; Twelve Leg machines have singles and duals.

V-Till® / Leg Parts Breakdown

Super Duty V-Till® / Hitch and Gauge Wheel
Parts Breakdown
